AvtoVAZ showed the updated “Niva”. Details about the design, units, suspension and brakes

AvtoVAZ showed the updated “Niva”. Details about the design, units, suspension and brakes

The updated Lada Niva Travel SUV with a 90-horsepower engine was photographed

“AvtoVAZ updated LADA Niva Travel. The restyled SUV, which received a more modern front end, improved brakes and a new engine with a modified gearbox, has been shown to the public more than once: at the SPIEF in June, the Innoprom exhibition in Yekaterinburg and the concern’s Open Day in Tolyatti.

АвтоВАЗ показал обновленную «Ниву». Подробности о дизайне, агрегатах, подвеске и тормозах

АвтоВАЗ показал обновленную «Ниву». Подробности о дизайне, агрегатах, подвеске и тормозах

АвтоВАЗ показал обновленную «Ниву». Подробности о дизайне, агрегатах, подвеске и тормозах

Photo Konstantin Zavyalov / “Auto News of the Day” from the International Industrial Exhibition “Innoprom”

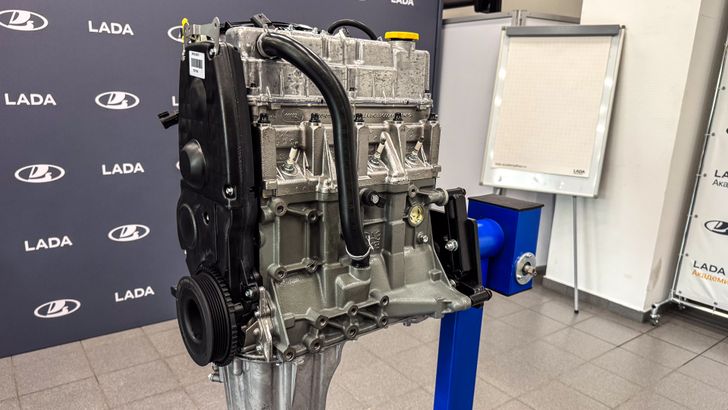

The interior of the car at “AvtoVAZ” has not yet been changed, but they have thoroughly worked on the “technology”. The main change was the engine – the place under the hood was taken by an 8-valve 90-horsepower naturally aspirated engine with a volume of 1.8 liters, created on the basis of units from front-wheel drive LADA models. In particular, it uses a cylinder block similar to the block of the 122-horsepower 1.8 Evo engine, from which the crankshaft and piston casting were also taken. In addition, an 8-valve cylinder head is used, which is widely used on 8-valve LADA engines.

LADA Niva Travel

LADA Niva Travel

LADA Niva Travel

Photo by Ivan Bakharev / “Auto News of the Day”

Photo Ivan Bakharev / “Auto News of the Day”

LADA Niva Travel

АвтоВАЗ показал обновленную «Ниву». Подробности о дизайне, агрегатах, подвеске и тормозах — Photo Ivan Bakharev / “Automotive news of the day”

The intake, exhaust, fuel supply and cooling systems in this engine have been specially adapted for Niva Travel. As a result, compared to the current 83-horsepower naturally aspirated 1.7:

the maximum power has been increased by 7 hp. (from 83 to 90 hp);

maximum torque increased by 24 Nm, and already at low speeds (about 1000 rpm) the torque increased by 27 Nm, which improves traction characteristics;

Двигатель LADA Niva Travel

specific fuel consumption decreased by 3-30% depending on conditions.

Интерьер LADA Niva Travel Photo by Ivan Bakharev / “Auto News of the Day”

Двигатель LADA Niva Travel

Photo Ivan Bakharev / “Auto News of the Day”

The transmission remained the VAZ five-speed manual, but it had to be separately adapted for the new engine. Part of this adaptation were:

new differential half-axle gears; Двигатель LADA Niva Travel

Двигатель LADA Niva Travel

new differential satellites; Двигатель LADA Niva Travel

Двигатель LADA Niva Travel

new rear axle half-shafts; Двигатель LADA Niva Travel

Двигатель LADA Niva Travel

changed secondary shaft 5th gear pinion;

upgraded reverse and 5th gear block; Двигатель LADA Niva Travel

Двигатель LADA Niva Travel

changed clutch housing; upgraded front and rear bridge. Двигатель LADA Niva Travel

Двигатель LADA Niva Travel

But that’s not all. Among other things, the updated LADA Niva Travel received a modified front suspension. For the sake of reliability and improved ride smoothness, engineers have implemented a more rigid front gearbox mount, and the stabilizer, which now has new brackets, was moved to the front of the car’s suspension, which improved steering wheel feedback and increased controllability.

The front hub roller bearing was replaced with a double-row ball bearing, which freed service technicians from the need to adjust the clearances of the SUV’s bearing. The steering knuckle has also been changed: stability under braking has been improved (negative rolling shoulder), and the knuckle dimensions have been reduced.

LADA Niva Travel

Интерьер LADA Niva Travel

LADA Niva Travel

LADA Niva Travel

LADA Niva Travel

LADA Niva Travel

Интерьер LADA Niva Travel

LADA Niva Travel

АвтоВАЗ показал обновленную «Ниву». Подробности о дизайне, агрегатах, подвеске и тормозах — Photo by Ivan Bakharev / “Auto News of the Day”

АвтоВАЗ показал обновленную «Ниву». Подробности о дизайне, агрегатах, подвеске и тормозах — Photo by Ivan Bakharev / “Auto News of the Day”

Photo by Ivan Bakharev / “Auto News of the Day”

Интерьер LADA Niva Travel

Photo by Ivan Bakharev / “Auto News of the Day”

Finally, a separate layer of improvements to the updated LADA Niva Travel affected the “brake unit”, which, according to AvtoVAZ representatives, in 2026, together with a new 90-horsepower 1.8-liter engine, an improved five-speed gearbox and front suspension, will completely migrate to the Niva Legend. We are talking, first of all, about single-piston front ventilated brake discs of increased diameter with a caliper from the “passenger” LADA Vesta.

Интерьер LADA Niva Travel

“We will try to unify a number of components as much as possible, because this is justified from the point of view of economics, and in terms of maintainability and other properties,” said an AvtoVAZ representative during the company’s technical seminar.

</p> <div id="a_single_tr1_p392138"> <blockquote><p>Earlier, AvtoNovosti Dnya learned that the localization level of the restyled LADA Niva Travel is 95%. As the director of product programs and projects of the company Oleg Grunenkov told us, the bridges for it, the engine, gearbox and transfer case are manufactured directly at AvtoVAZ.</p> <p> <i class="sharebar__icon fa fa_ok">Author: Ivan Bakharev</p> </p></div> <p> </a><figcaption class="article-picture__desc" id="gallery-4-389359"> <blockquote><p><i class="sharebar__icon fa fa_tg"><input type="radio" name="gallery-3" id="gallery-3-helper-1" class="gallery__helper gallery__helper-1" aria-labelledby="gallery-3-389354" checked></p> <div id="a_single_t2_d_p392138"> <blockquote><p></script><input type="radio" name="gallery-3" id="gallery-3-helper-1" class="gallery__helper gallery__helper-1" aria-labelledby="gallery-3-389354" checked></p> <div id="a_single_t2_d_p392138"> <blockquote><p><i class="sharebar__icon fa fa_vk"><input type="radio" name="gallery-4" id="gallery-4-helper-1" class="gallery__helper gallery__helper-1" aria-labelledby="gallery-4-389365" checked><img decoding="async" width="728" height="410" src='https://auto.infodaily.news/wp-content/uploads/2025/08/localimages/0a0f1def014c1fb1737f9d3a2b6d23cb-728x410.jpg' class="attachment-medium size-medium" alt="Двигатель LADA Niva Travel" loading="lazy" title="Двигатель LADA Niva Travel"> </ul> <p> </a></p> <div id="a_single_f2_d_p392138" class="in" style="width:728px;max-height:350px;overflow:hidden"> <div id="a_single_f2_m_on_p392138" class="in in_gap on" style="max-height:74vh;overflow:hidden">LADA</ul> <p><i class="sharebar__icon fa fa_ok">AvtoVAZ<input type="radio" name="gallery-3" id="gallery-3-helper-1" class="gallery__helper gallery__helper-1" aria-labelledby="gallery-3-389354" checked></ul> </div> <p> <script>window.Ya.adfoxCode.hbCallbacks.push((function{if(window.matchMedia("(max-width:767px)").matches){window.Ya.headerBidding.pushAdUnits([{code:"a_single_t1_m_p392138",codeType:"combo",sizes:[[300,300],[300,250],[336,280]],bids:[{bidder:"myTarget",params:{placementId:"902836"}},{bidder:"astralab",params:{placementId:"66bde2cc8cd73950449e701f"}},{bidder:"smi2",params:{placementId:"103876"}},{bidder:"adfox_adsmart",params:{p1:"didvu",p2:"ul"}}]}])}window.yaContextCb.push((=>{Ya.adfoxCode.createAdaptive({ownerId:287487,containerId:"a_single_t1_m_p392138",params:{pp:"vnx",ps:"douq",p2:"grbe"},onStub:function{Ya.adfoxCode.hide("a_single_t1_m_p392138");document.getElementById("a_single_t1_m_on_p392138").classList.remove("in","in_gap","in_article","on","ph")},onRender:function{document.getElementById("a_single_t1_m_on_p392138").style.background="#f5f5f5"}},["phone"],{phoneWidth:767})}))}));</script><script>window.Ya.adfoxCode.hbCallbacks.push((function{if(window.matchMedia("(min-width:768px)").matches){window.Ya.headerBidding.pushAdUnits([{code:"a_single_t1_d_p392138",codeType:"combo",sizes:[[728,90],[728,250]],bids:[{bidder:"myTarget",params:{placementId:"1833247"}},{bidder:"astralab",params:{placementId:"66bde2cc8cd73950449e701f"}},{bidder:"smi2",params:{placementId:"103879"}},{bidder:"adfox_adsmart",params:{p1:"ctgxm",p2:"ul"}}]}])}window.yaContextCb.push((=>{Ya.adfoxCode.createAdaptive({ownerId:287487,containerId:"a_single_t1_d_p392138",params:{pp:"xhs",ps:"douq",p2:"grbc"},onStub:function{Ya.adfoxCode.hide("a_single_t1_d_p392138");document.getElementById("a_single_t1_d_on_p392138").classList.remove("in","in_article","on","ph")},onRender:function{document.getElementById("a_single_t1_d_on_p392138").style.background="none"}},["desktop"],{tabletWidth:767})}))}));</script><script>window.Ya.adfoxCode.hbCallbacks.push((function{if(window.matchMedia("(max-width:767px)").matches){window.Ya.headerBidding.pushAdUnits([{code:"a_single_t2_m_p392138",codeType:"combo",bids:[{bidder:"myTarget",params:{placementId:"1003730"}},{bidder:"astralab",params:{placementId:"6834146f27abcce948f77874"}},{bidder:"smi2",params:{placementId:"103877"}},{bidder:"adfox_adsmart",params:{p1:"didvy",p2:"ul"}}]}])}window.yaContextCb.push((=>{Ya.adfoxCode.createAdaptive({ownerId:287487,containerId:"a_single_t2_m_p392138",params:{pp:"yvz",ps:"douq",p2:"hnkl"},lazyLoad:{fetchMargin:100,mobileScaling:2},onStub:function{Ya.adfoxCode.hide("a_single_t2_m_p392138");document.getElementById("a_single_t2_m_on_p392138").classList.remove("in","in_gap","in_article","on","ph")},onRender:function{document.getElementById("a_single_t2_m_on_p392138").style.background="#f5f5f5"}},["phone"],{phoneWidth:767})}))}));</script><script>window.Ya.adfoxCode.hbCallbacks.push((function{window.yaContextCb.push((=>{Ya.adfoxCode.createAdaptive({ownerId:287487,containerId:"a_single_t2_d_p392138",params:{pp:"eslo",ps:"douq",p2:"jcnc"},onStub:function{Ya.adfoxCode.hide("a_single_t2_d_p392138"),document.getElementById("a_single_t2_d_on_p392138").classList.remove("in","in_article","on","ph")},onRender:function{document.getElementById("a_single_t2_d_on_p392138").style.background="none"}},["desktop"],{tabletWidth:767})}))}));</script><script>window.yaContextCb.push((=>{Ya.adfoxCode.create({ownerId:287487,containerId:"a_single_tr1_p392138",params:{pp:"eiij",ps:"douq",p2:"gqqu"},onStub:function{Ya.adfoxCode.hide("a_single_tr1_p392138"),document.getElementById("a_single_tr1_m_d_on_p392138").classList.remove("in","in_article","on","ph")},onRender:function{document.getElementById("a_single_tr1_m_d_on_p392138").style.background="#f5f5f5"}})}));</script> </p> <div id="a_single_f1_d_p392138" class="in" style="width:728px;max-height:480px;overflow:hidden">#a_single_tr1_m_d_on_p392 138.on{min-height:232px;padding:1.6rem;border-radius:8px;margin-right:-1.6rem;margin-left:-1.6rem}#a_single_tr1_m_d_on_p392138.on:before{display:block;content:”Read also”;font-size:1.7rem;font-weight:500;margin-bottom:.8rem}@media(max-width:767px){#a_single_tr1_m_d_on_p392138.on{border-radius:0}}<img decoding="async" width="728" height="410" src='https://auto.infodaily.news/wp-content/uploads/2025/08/localimages/a462f1a3e16daf25dbbb15b9251ecc31-728x410.jpg' class="attachment-medium size-medium" alt="Интерьер LADA Niva Travel" loading="lazy" title="Интерьер LADA Niva Travel"><script>window.Ya.adfoxCode.hbCallbacks.push((function{if(window.matchMedia("(max-width:767px)").matches){window.Ya.headerBidding.pushAdUnits([{code:"a_single_t3_m_p392138",codeType:"combo",bids:[{bidder:"myTarget",params:{placementId:"1003732"}},{bidder:"astralab",params:{placementId:"683414e827abcce948f7787a"}},{bidder:"smi2",params:{placementId:"103878"}},{bidder:"adfox_adsmart",params:{p1:"didvz",p2:"ul"}}]}])}window.yaContextCb.push((=>{Ya.adfoxCode.createAdaptive({ownerId:287487,containerId:"a_single_t3_m_p392138",params:{pp:"ywa",ps:"douq",p2:"hnkm"},lazyLoad:{fetchMargin:100,mobileScaling:2},onStub:function{Ya.adfoxCode.hide("a_single_t3_m_p392138");document.getElementById("a_single_t3_m_on_p392138").classList.remove("in","in_gap","in_article","on","ph")},onRender:function{document.getElementById("a_single_t3_m_on_p392138").style.background="#f5f5f5"}},["phone"],{phoneWidth:767})}))}));</script></p> <style> <div id="a_single_f2_d_p392138" class="in" style="width:728px;max-height:350px;overflow:hidden"> </div> <ul class="tags"></div> <p> <script>window.Ya.adfoxCode.hbCallbacks.push((function{if(window.matchMedia("(min-width:768px)").matches){window.Ya.headerBidding.pushAdUnits([{code:"a_single_f1_d_p392138",codeType:"combo",bids:[{bidder:"myTarget",params:{placementId:"903582"}},{bidder:"astralab",params:{placementId:"6834154627abcce948f77880"}},{bidder:"smi2",params:{placementId:"103880"}},{bidder:"adfox_adsmart",params:{p1:"cozit",p2:"ul"}}]}])}window.yaContextCb.push((=>{Ya.adfoxCode.createAdaptive({ownerId:287487,containerId:"a_single_f1_d_p392138",params:{pp:"i",ps:"douq",p2:"gofl"},lazyLoad:{fetchMargin:100,mobileScaling:2},onStub:function{document.getElementById("a_single_f1_d_p392138").classList.remove("in")}},["desktop"],{tabletWidth:767})}))}));</script></p> <div id="a_single_f2_m_on_p392138" class="in in_gap on" style="max-height:74vh;overflow:hidden"> <div id="a_single_f2_m_p392138"></div> </div> <p> <script>window.Ya.adfoxCode.hbCallbacks.push((function{if(window.matchMedia("(max-width:767px)").matches){window.Ya.headerBidding.pushAdUnits([{code:"a_single_f2_m_p392138",codeType:"combo",bids:[{bidder:"myTarget",params:{placementId:"1856236"}}]}])}window.yaContextCb.push((=>{Ya.adfoxCode.createAdaptive({ownerId:287487,containerId:"a_single_f2_m_p392138",params:{pp:"vnz",ps:"douq",p2:"hijb"},lazyLoad:{fetchMargin:100,mobileScaling:2},onStub:function{Ya.adfoxCode.hide("a_single_f2_m_p392138");document.getElementById("a_single_f2_m_on_p392138").classList.remove("in","in_gap","on")}},["phone"],{phoneWidth:767})}))}));</script></p> <div id="a_single_f2_d_p392138" class="in" style="width:728px;max-height:350px;overflow:hidden"></div> <p> <script>window.yaContextCb.push((=>{Ya.adfoxCode.createAdaptive({ownerId:287487,containerId:"a_single_f2_d_p392138",params:{pp:"vow",ps:"douq",p2:"hnkj"},lazyLoad:{fetchMargin:100,mobileScaling:2},onStub:function{document.getElementById("a_single_f2_d_p392138").classList.remove("in")}},["desktop"],{tabletWidth:767})}));</script></div> <div class="source-container"> <div class="source-title"><span> Источник: </span><a href="https://avtonovostidnya.ru/">Avtonovostidnya </a></div> </div> </div> <footer>   <div class="td-post-source-tags">   </div> <div class="td-post-sharing-bottom"><div class="td-post-sharing-classic"><iframe frameBorder="0" src="https://www.facebook.com/plugins/like.php?href=https://auto.infodaily.news/novinki/avtovaz-showed-the-updated-niva-details-about-the-design-units-suspension-and-brakes/&layout=button_count&show_faces=false&width=105&action=like&colorscheme=light&height=21" style="border:none; overflow:hidden; width:auto; height:21px; background-color:transparent;">
